40CH 48CH 100G DWDM Mux Demux AAWG Athermal AWG Module Flat Top/Gaussian
Athermal AWG (Arrayed Waveguide Grating) is a high performance DWDM mux/demux device operating on 100GHz channel spacing without the need for temperature stabilization. The planar processed silica-on-silicon chips comprise arrayed channel waveguides to separate or combine multiple wavelengths. Athermal AWG s allow multiplexing and demultiplexing of DWDM signals over a wide operating temperature range, without the need for heater drive and monitoring electronics.
These AWG offer low insertion loss, excellent channel isolation, ease of fiber handling, and long-term reliability in a compact package. Unifiber’s athermalization technology simplifies deployment of AWG multiplexers/demultiplexers by DWDM network providers.
Features:
~ 40CH 100G AWG Moduie (40CH 100G DWDM Mux Demux)
~lnsertion Loss Ripple:1.0db
~Optical Returnloss:40db
~Band: C-Band, L-Band, C+L-Band, Customize is optional
~Number of Channeis:16CH,32CH,40CH,48CH,Special is optional
~Spacing:50G,100G,200G,Special is optional
~Filter Shape: Gaussian, Broad Gaussian, Flat Top is optional
~Package: Module, Rack, Special is optional
~Fiber Length:0.5m,1m,1.5m,2m,2.5m,3m,Specify is optional
~ln/Out Connector:None,FC/APC,FC/PC,SC/APC,SC/PC,LC/APC,LC/PC,ST/UPC,Specify is optional
| Parameter | Unit | Gaussian | Flat-Top |
| Channel Wavelength (nm) | nm | ITU 100 GHz Grid |
| Number of channels | - | 16,32,40,48 or other |
| Wavelength Accuracy (nm) | nm | ± 0.05 |
| Insertion Loss (dB) | dB | < 4.5 | < 6.0 |
| Channel Passband (@-1dB bandwidth) | nm | > 0.2 | > 0.3 |
| Channel Passband (@-3dB bandwidth) | nm | > 0.4 | > 0.5 |
| Total Crosstalk(dB) | dB | > 20 | > 23 |
| Channel Ripple (dB) | dB | < 0.75 |
| Isolation(dB) | Adjacent | dB | > 25 |
| Non-adjacent | dB | > 30 |
| Max. Uniformity | dB | 1.2 |
| Chromatic Dispersion | ps/nm | -20~+20 |
| Max. Polarization Dependent Loss | dB | 0.5 |
| Max. Polarization Mode Dispersion | ps | 0.5 |
| Min. Directivity | dB | > 50 |
| Min. Return Loss | dB | > 45 |
| Maximum Power Handling | mW | 300 |
| Fiber type | - | SMF-28e or other |
| Operating Temperature | °C | -5 ~+70 |
| Storage Temperature | °C | -40 ~+85 |

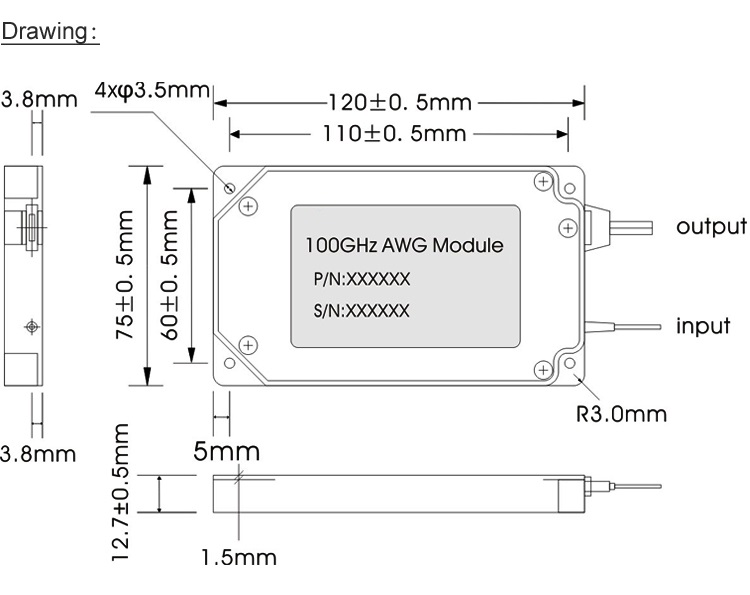

| Dimension | mm | L120 x W70 x H12 |
| 19" 1U Rack mount:431.5*250*44 |
